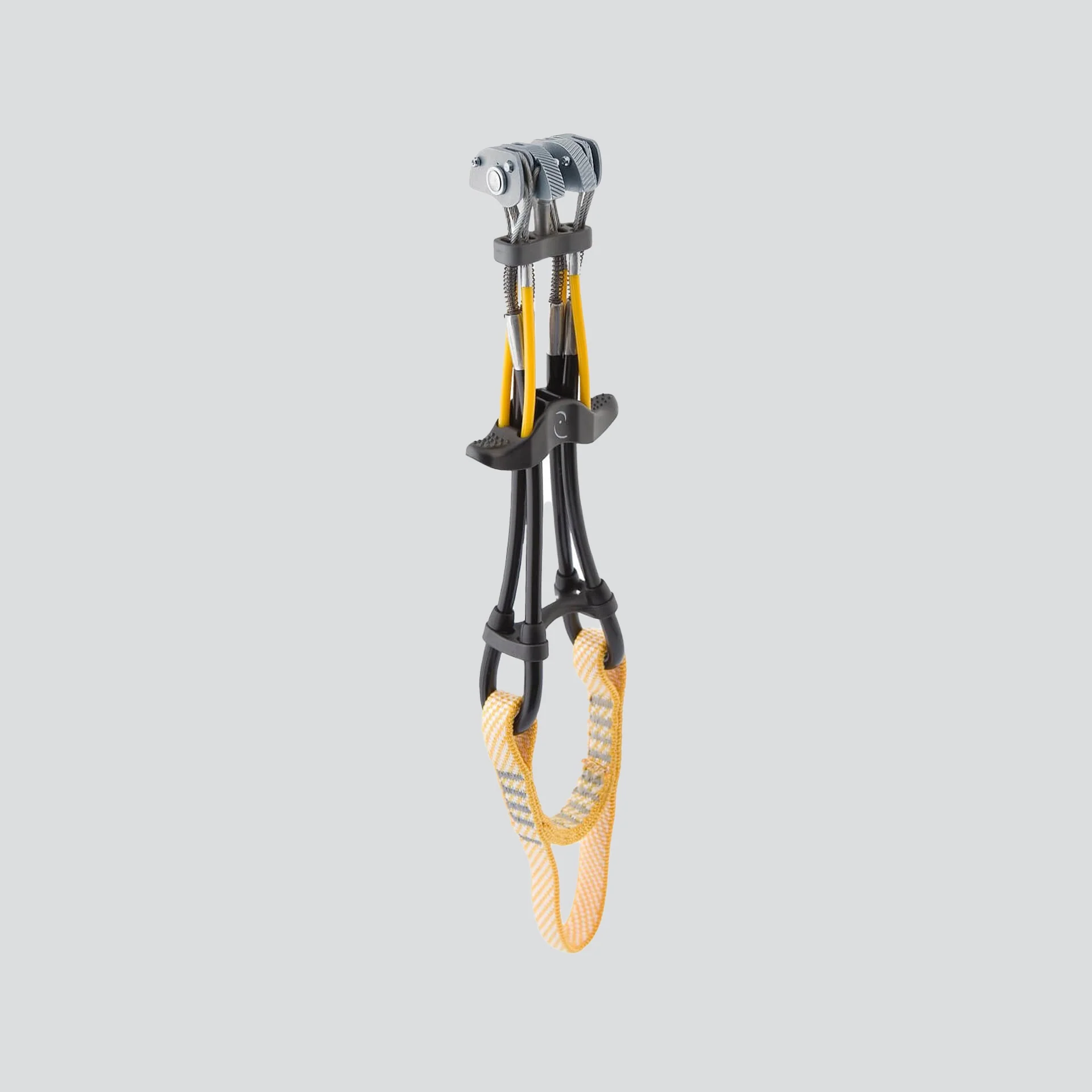

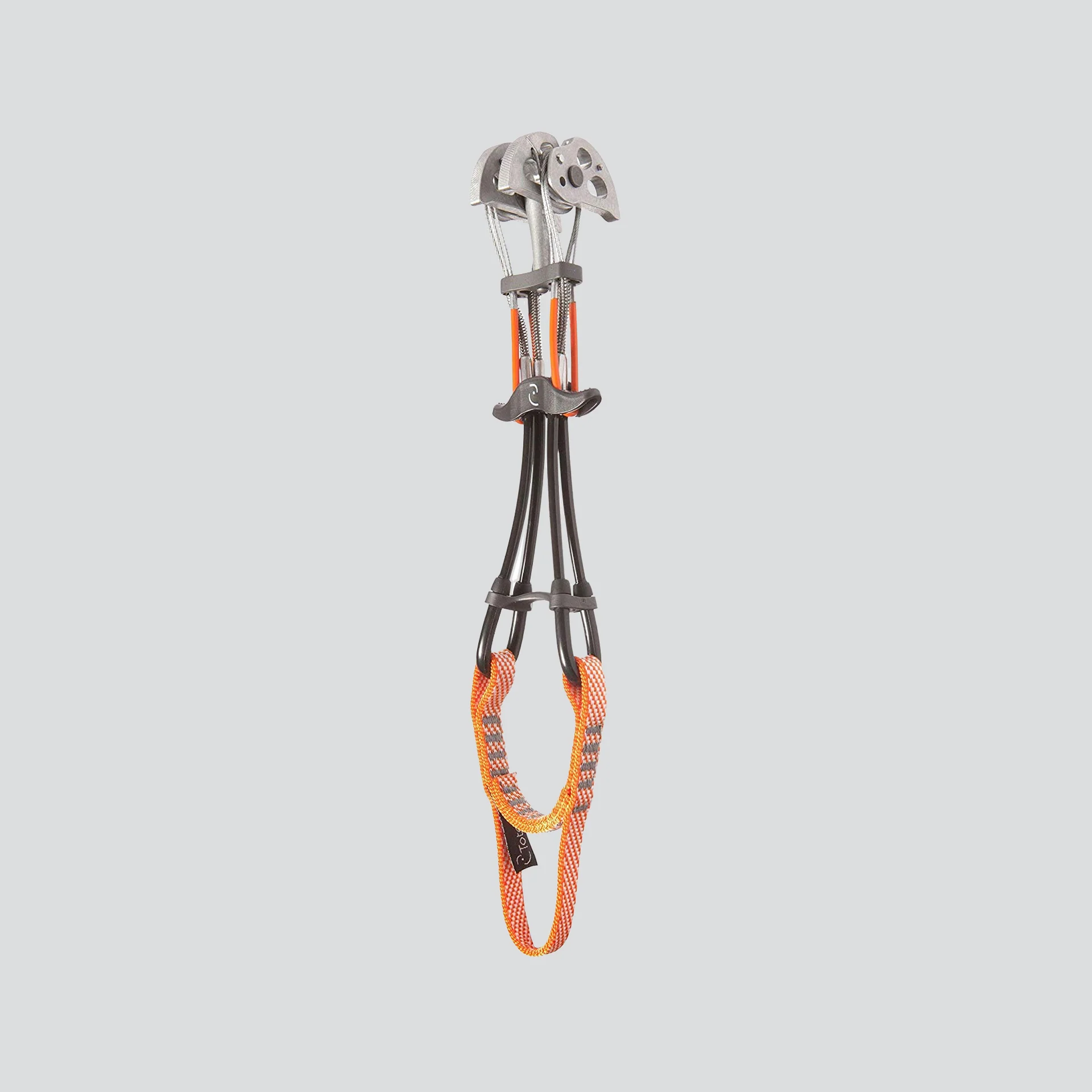

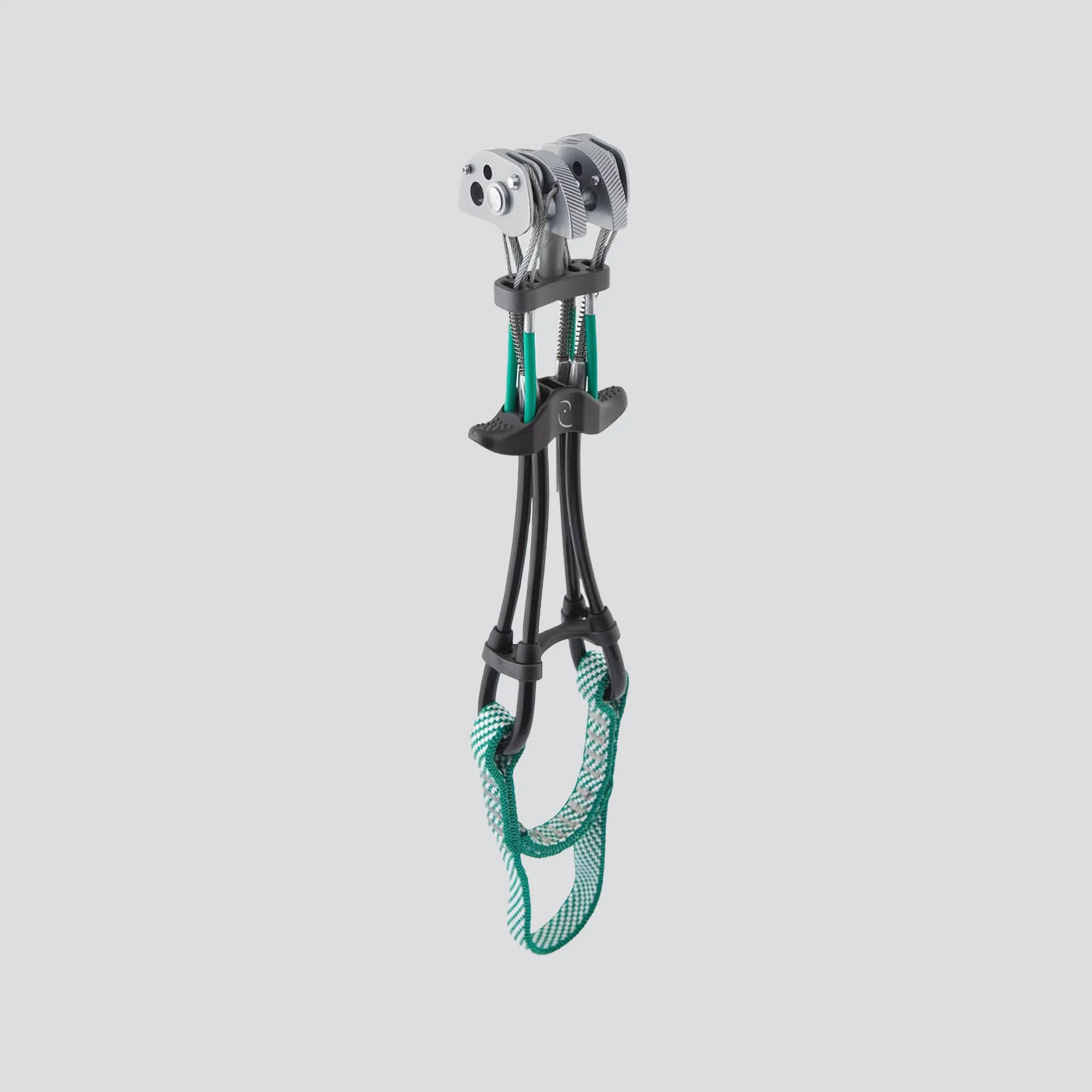

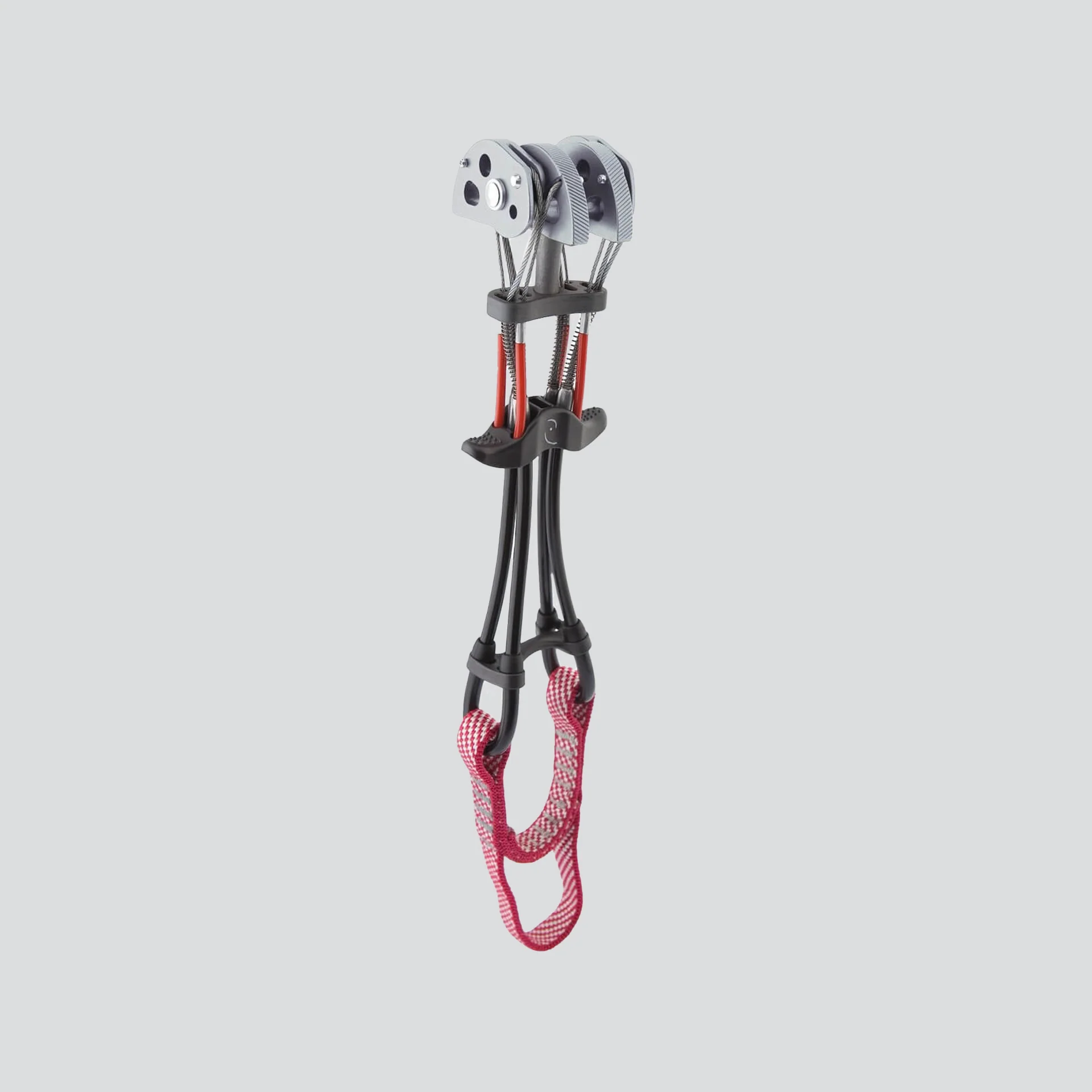

Totem Cams

The Totem Cam offers an extraordinary holding power and unique capabilities with the patented Direct Loading system. Exclusive design which features everything you require of a cam for all-around use with extended capabilities. Technology that is pushing the clean climbing limits.

Characteristics
Superb holding power with the exclusive Direct Loading system.
The narrowest head width on small sizes.
Loadable on just two lobes.
Less walking due to strong springs and good flexibility.
Smoother to remove.
Easy handling even with hand gloves.
Good expansion range (1.64:1).
Light and durable.
No passive strength.

SPECS

Size	Range	Strength	Weight
0.50 (black)	0.46-0.74″ 11,7-18,9mm	6KN	69gr
0.65 (blue)	0.54-0.89″ 13,8-22,5mm	8KN	75gr
0.80 (yellow)	0.67-1.09″ 17-27,7mm	9KN	83gr
1.00 (purple)	0.82-1.35″ 20,9-34,2mm	10KN	95gr
1.25 (green)	1.01-1.67″ 25,7-42,3mm	13KN	109gr
1.50 (red)	1.24-2.06″ 31,6-52,2mm	13KN	132gr
1.80 (orange)	1.56-2.53″ 39,7-64,2mm	13KN	144gr

DOWNLOADS

Instructions For Use
UE Certificate Of Conformity
Loading just two lobes
Cam mechanical principles
Cam Repair Form

** For the safety of others and by law, we cannot accept returns or exchanges on any load bearing gear **
